Solar energy deployment battery systems
Designed to contribute long life and deep cycle discharge. The solar battery is available in several options depending on your design criteria. Batteries designed for long life for many energy deployment systems.
There are many important components in the Renewable Energy System. People in general only see the Solar Panels and assume that is all they need.
Batteries are an extremely important part of the Renewable Energy circuit. They are the petrol in your car or the defender in your football team. Without it, the system is useless. The battery stores the energy from the Solar Panel and then can be used through an Inverter to create AC current for your home.
To ensure all power is stored and can be delivered efficiently it is of paramount importance that you use a good quality battery. At Dragon's Breath we understand what happens when the wrong size battery, wrong type of battery or lack of quality battery is used. The batteries that we supply are deep-cycle, reliable, well known and come with a manufacturer's warranty. A low grade of battery can be extremely dangerous, so please seek our professional advice and we can advise you accordingly.
Ideally for a Renewable Energy System the batteries used must be deep cycle. This is where deep cycle batteries will use between 50-80% of its capacity and can be recharged repeatedly many times. At Dragon's Breath we only supply high quality batteries. We have a large range of battery sizes power for any project you commence with. As Solar Power specialists, with a vast array of experience and knowledge, Dragon's Breath will be able to size up your output requirements and design a system with the battery size accordingly.
| Description | Click on picture for price |

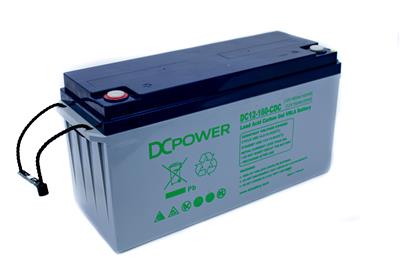

| Deep cycle carbon gel solar power battery 12v 85Ah 2000 cycles Size 350 x 167 x 180mm Weight @ 23kg |
 |
| Deep cycle carbon gel solar power battery 12v 90Ah 2000 cycles Size 260 x 169 x 210mm Weight @ 23.5kg |
|
| Deep cycle carbon gel solar power battery 12v 110Ah 2000 cycles Size 328 x 172 x 222mm Weight @ 29kg |
|
| Deep cycle carbon gel solar power battery 12v 150Ah 2000 cycles Size 340 x 172 x 280mm Weight @ 44kg |
|
| Deep cycle carbon gel solar power battery 12v 160Ah 2000 cycles Size 483 x 170 x 241mm Weight @ 44.5kg |
|
| Deep cycle carbon gel solar power battery 12v 200Ah 2000 cycles Size 532 x 207 x 219mm Weight @ 52kg |
|
| Deep cycle carbon gel solar power battery 12v 240Ah 2000 cycles Size 522 x 240 x 219mm Weight @ 63kg |
|
| Deep cycle carbon gel solar power battery 12v 280Ah 2000 cycles Size 520 x 268 x 220mm Weight @ 71kg |
|

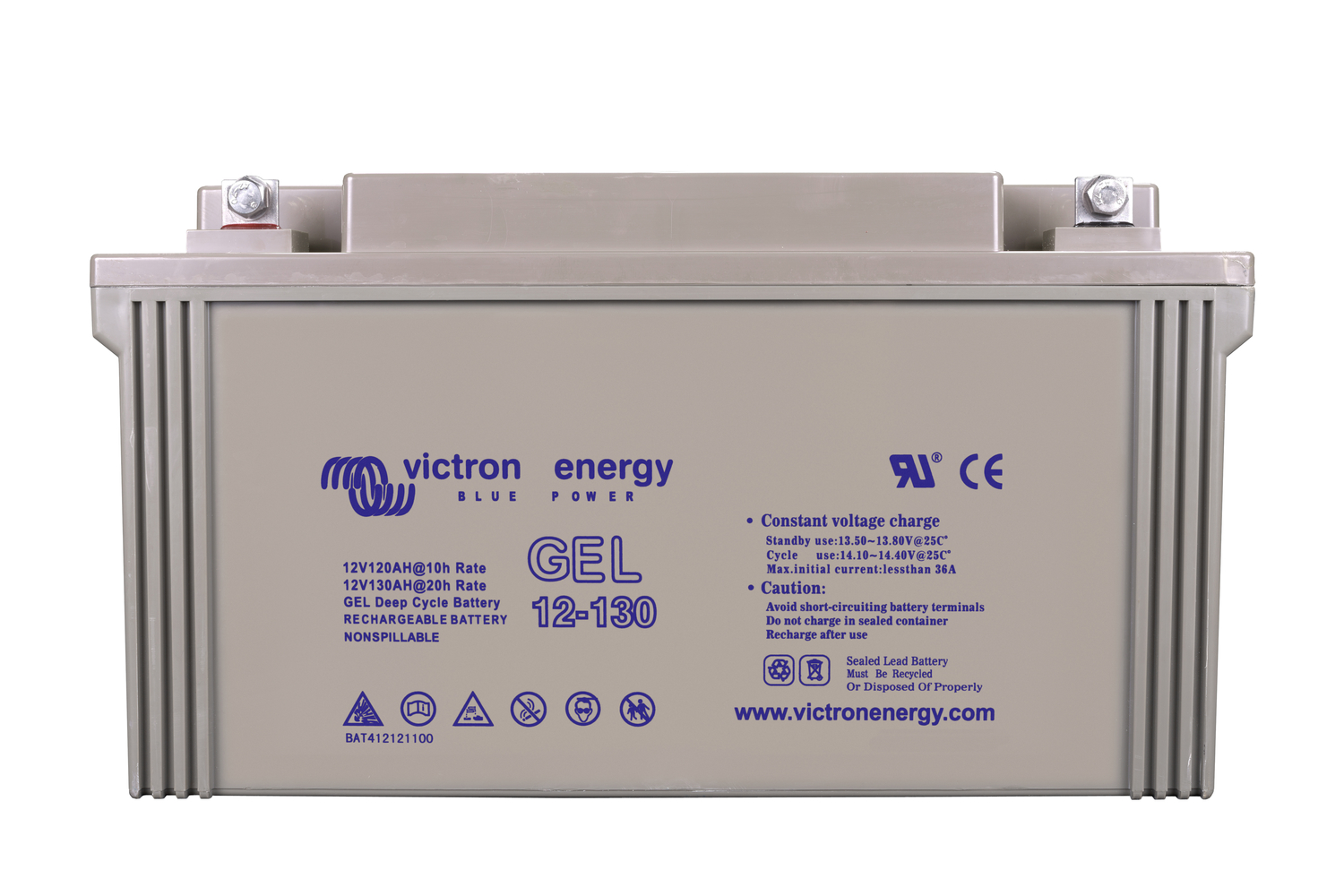

Victron Gel batteries for non spill and long distance transportation situations Suited to deliver a higher yield without maintenance. Rated capacity: 20 hr. discharge at 25 degrees C Victron 12v deep cycle Gel batteries
Float design life:
12 years at 20 degrees C
Cycle design life:
400 cycles at 80 percent discharge
600 cycles at 50 percent discharge
1500 cycles at 30 percent discharge
|
Description |
Click on picture for price |
| Victron energy deep cycle gel battery 12v 60Ah size 229x138x227mm weight 20kg |
|
| Victron energy deep cycle gel battery 12v 90Ah size 350x167x183 weight 27kg |
|
| Victron energy deep cycle gel battery 12v 110Ah size 330x171x220 weight 32kg |
|
| Victron energy deep cycle gel battery 12v 130Ah size 410x176x227mm weight 38kg |
|
| Victron energy deep cycle gel battery 12v 165Ah size 485x172x240mm weight 47kg |
|
| Victron energy deep cycle gel battery 12v 220Ah size 522x238x240mm weight 65kg |
|

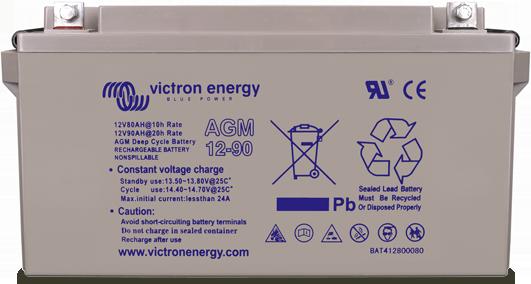

Victron deep cycle AGM batteries are suitable for many solar energy projects
| Victron energy deep cycle AGM battery 12v 8Ah size 151x65x101mm weight 2.5kg |
|
|
Victron energy deep cycle AGM battery 12v 14Ah size 151x98x101mm weight 4.1kg |
|
|
Victron energy deep cycle AGM battery 12v 22Ah size 181x77x167mm weight 5.8kg |
|
|
Victron energy deep cycle AGM battery 12v 38Ah size 197x165x170mm weight 12.5kg |
|
|
Victron energy deep cycle AGM battery 12v 60Ah size 229x138x227mm weight 20kg |
|
|
Victron energy deep cycle AGM battery 12v 66Ah size 258x166x235mm weight 24kg |
|
|
Victron energy deep cycle AGM battery 12v 90Ah size 350x167x183mm weight 27kg |
|
|
Victron energy deep cycle AGM battery 12v 110Ah size 330x171x220mm weight 32kg |
|
| Victron energy deep cycle AGM battery 12v 130Ah size 410x176x227mm weight 38kg |
|
|
Victron energy deep cycle AGM battery 12v 165Ah size 485x172x240mm weight 47kg |
|
|
Victron energy deep cycle AGM battery 12v 220Ah size 522x238x240mm weight 65kg |
|
|
Victron energy deep cycle AGM battery 6v 240Ah size 320x176x247mm weight 31kg |
|

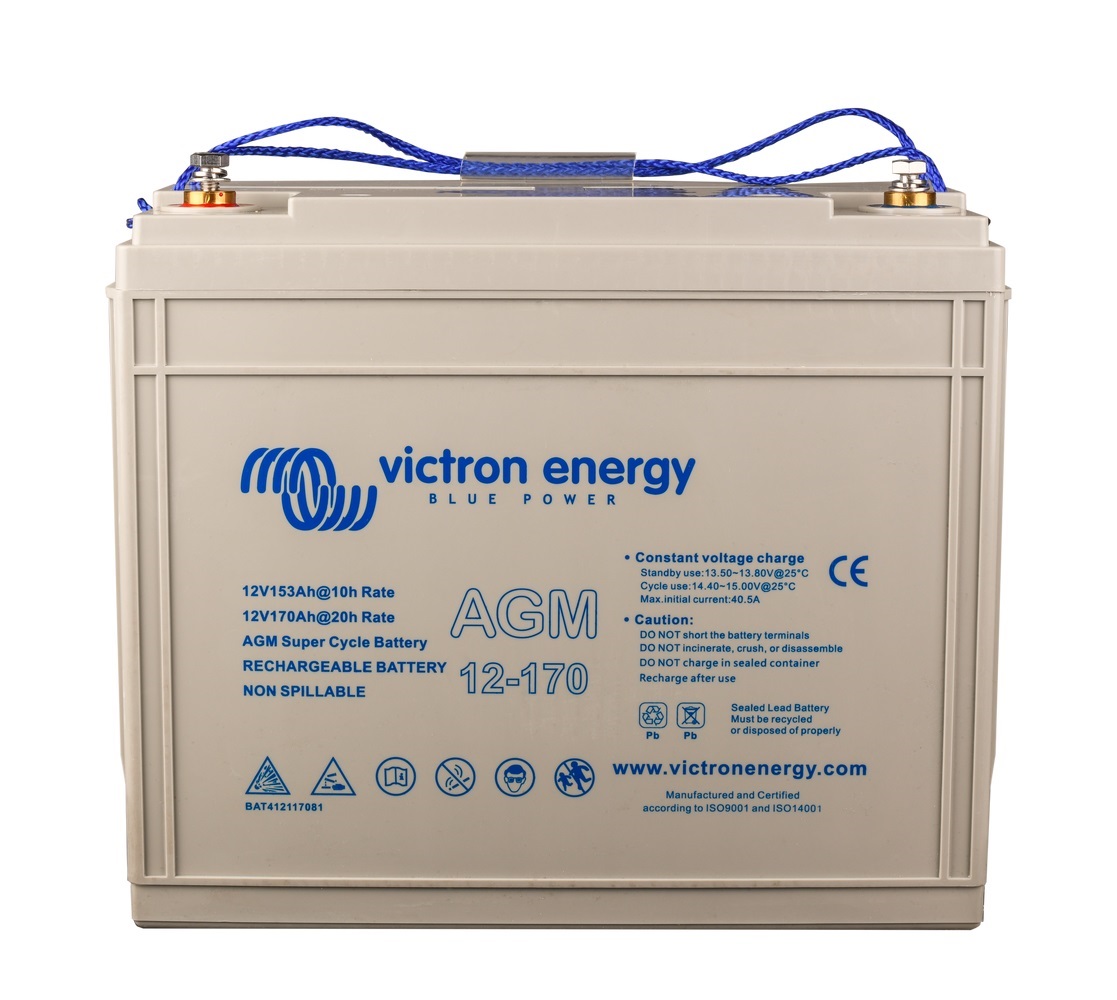

Super cycle batteries last up to 7 years without maintenance
|
Victron energy Super cycle AGM battery 12v 15Ah size 151 x 100 x 103mm weight 4.1kg |
|
|
Victron energy Super cycle AGM battery 12v 25Ah 181 x 77 x 175mm weight 6.5kg |
|
|
Victron energy Super cycle AGM battery 12v 38Ah 267 x 77 x 175mm weight 9.5kg |
|
|
Victron energy Super cycle AGM battery 12v 60Ah 224 x 135 x 178mm weight 14kg |
|
|
Victron energy Super cycle AGM battery 12v 100Ah 260 x 168 x 215mm weight 26kg |
|
|
Victron energy Super cycle AGM battery 12v 125Ah 330 x 171 x 214mm weight 33kg |
|
|
Victron energy Super cycle AGM battery 12v 170Ah 336 x 172 x 280mm weight 45kg |
|
|
Victron energy Super cycle AGM battery 12v 230Ah 532 x 207 x 226mm weight 57kg |
|

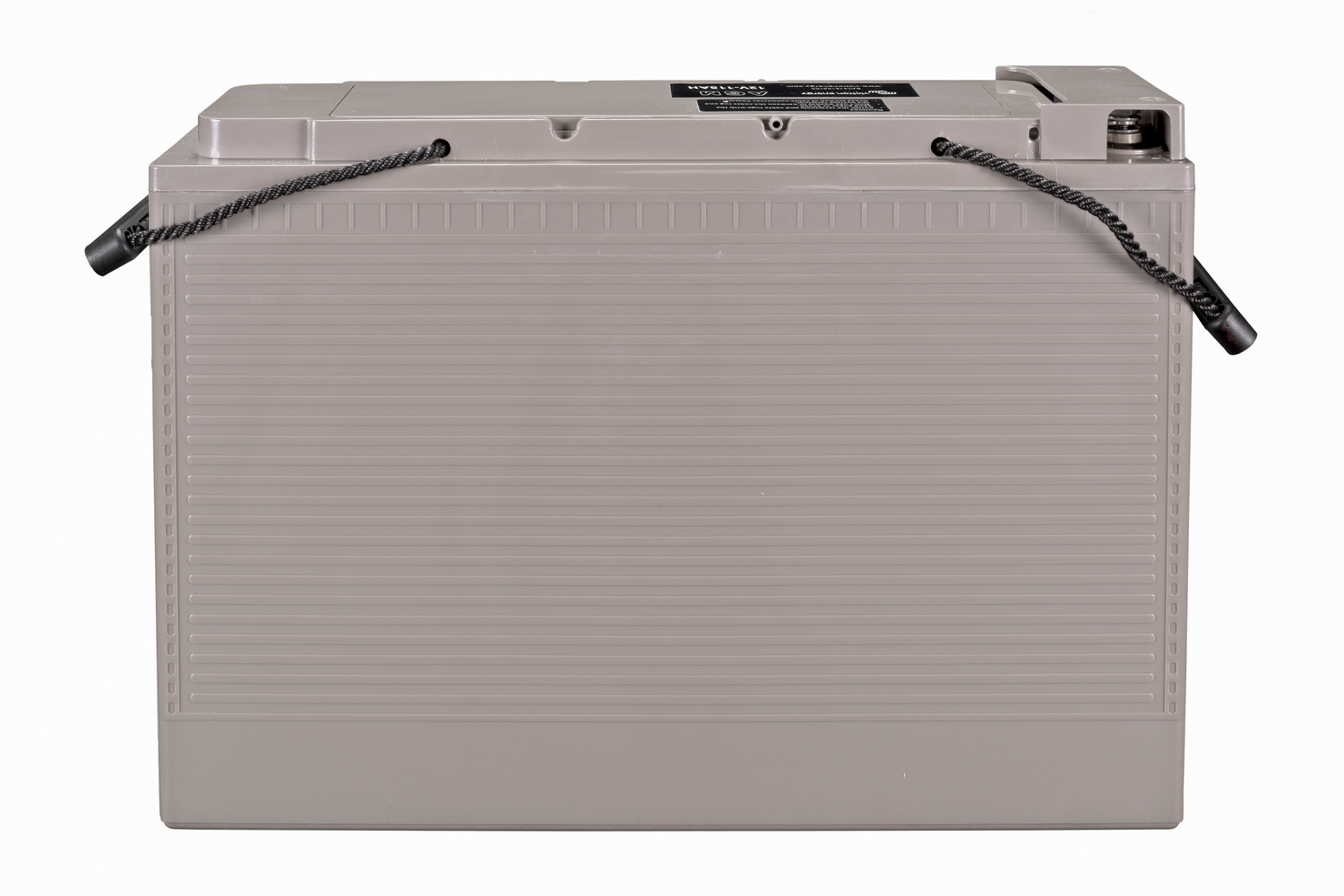

AGM Telecom deep cycle batteries last up to 12 years without any maintenance being required. Available in 115Ah, 165Ah and 200Ah. These are ideal for many off the grid applications to plug in and forget.
|
Victron telecom deep cycle AGM battery 12v 115Ah size 395 x 110 x 293mm weight 35kg |
|
|
Victron telecom deep cycle AGM battery 12v 165Ah size 548 x 105 x 316mm weight 49kg |
|
|
Victron telecom deep cycle AGM battery 12v 200Ah size 546 x 125 x 323mm weight 60kg |
|
LiFePo4 Lithium batteries can be used for similar tasks in many solar paneled battery storage situations. They are small, compact and easy to handle. Lithium cells have 2000 cycles, therefore their life and can be used to a much greater dod capacity. So life is much greater in comparison to lead acid or agm style batteries.
|
Description |
Price link |
|
Victron lithium ion phosphate deep cycle batteries 12.8v 50Ah 640Wh size 199 x 188 x 147mm weight 7kg |
|
| Victron lithium ion phosphate deep cycle batteries 12.8v 60Ah 768Wh size 239 x 286 x 132mm weight 12kg |
|
| Victron lithium ion phosphate deep cycle batteries 12.8v 100Ah 1280Wh size 197 x 321 x 152mm weight 14kg |
|
| Victron lithium ion phosphate deep cycle batteries 12.8v 160Ah 2048Wh size 237 x 321 x 152mm weight 18kg |
|
| Victron lithium ion phosphate deep cycle batteries 12.8v 200Ah 2560Wh size 237 x 321 x 152mm weight 20kg |
|
| Victron lithium ion phosphate deep cycle batteries 12.8v 300Ah 3840Wh size 347 x 425 x 274mm weight 20kg |
|
| Victron lithium ion phosphate deep cycle batteries 25.6v 200Ah 5120Wh size 237 x 650 x 163mm weight 39kg |
|

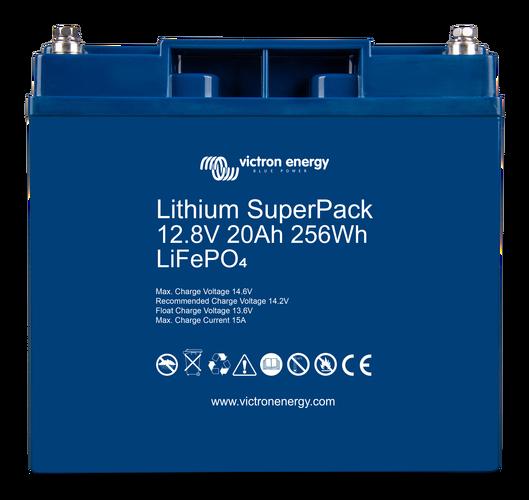

Victron battery packs which are suitable for compact high performance uses with low DOD capacities.
|
Description |
Price link |
|
Victron lithium super pack batteries 12.8v 20Ah 256Wh size 167 x 181 x 77mm weight 7kg |
|
| Victron lithium super pack batteries 12.8v 60Ah 765Wh size 213 x 229 x 138mm weight 9.5kg |
|
| Victron lithium super pack batteries 12.8v 100Ah 1280Wh size 220 x 330 x 172mm weight 14kg |
|
|
Victron lithium super pack batteries 12.8v 200Ah 2560Wh size 208 x 520 x 269mm weight 21kg |
|
